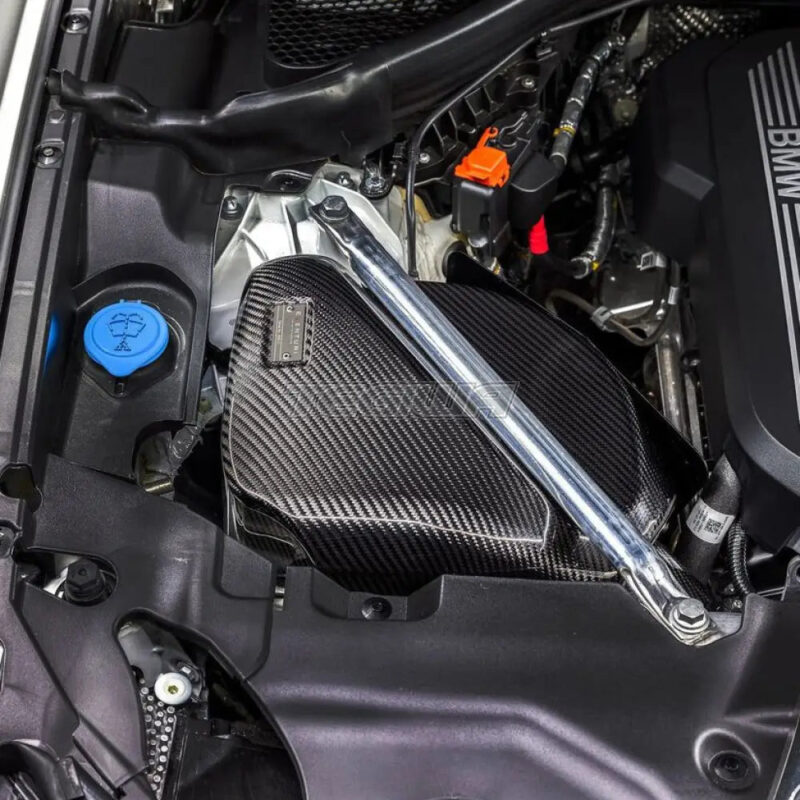

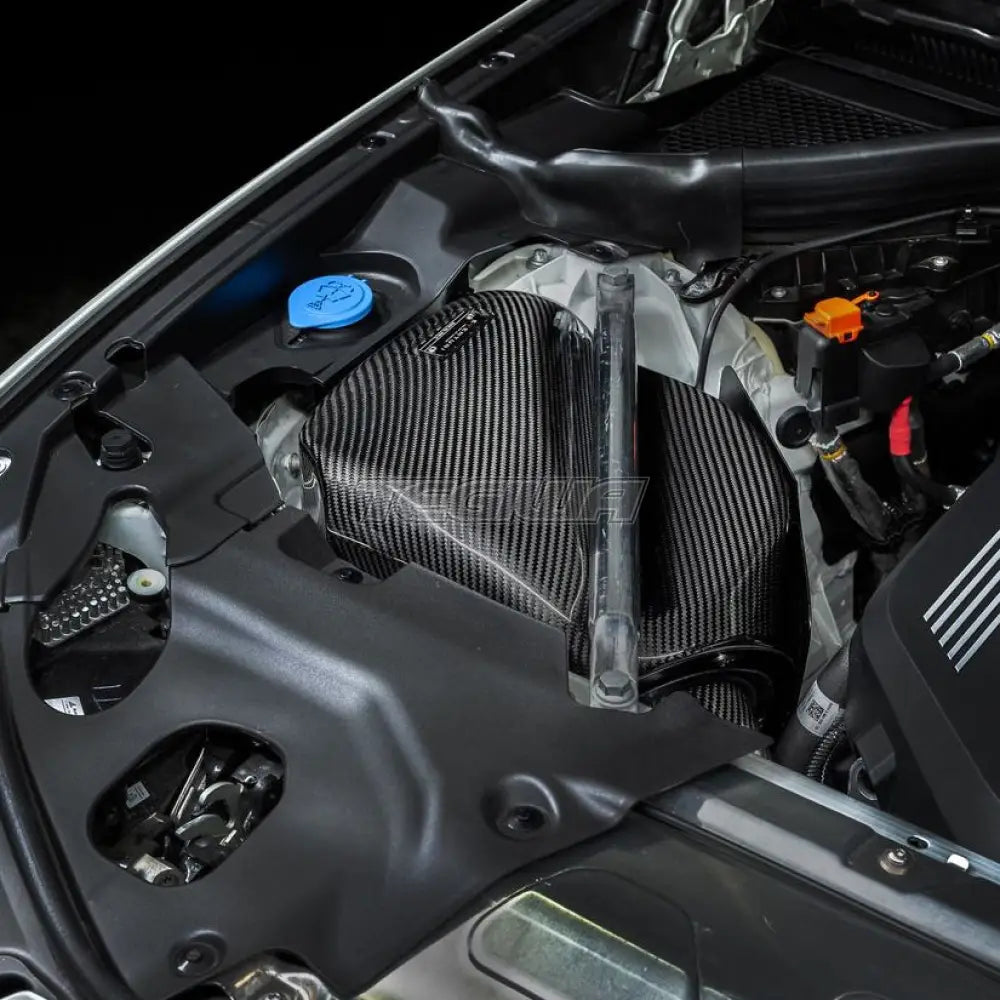

The BMW X3 M40i Eventuri intake has been developed to provide the turbo with a less restrictive flow path whilst maintaining low inlet temperatures.
In the M40i, the intake systems proximity to the exhaust manifold poses a challenge, rapidly heating the engine bay. Elevated temperatures compromise engine performance, necessitating a solution that ensures minimal intake air temperatures (IATs). Our solution comprises of a fully sealed intake system, designed to counteract heat soak and prevent the turbo from drawing in heated air.
Moreover, our sealed airbox features a heat shield lined with gold reflective, effectively minimizing radiative heat transfer from the exhaust manifold. To optimize airflow volume, weve maximized the airbox size, incorporating a recess to accommodate the strut brace seamlessly.
Replacing the stock convoluted intake tube, our design employs a prepreg carbon tube, boasting a much larger internal volume with an internal diameter of 109mm (4.3) that seamlessly tapers down to match the turbo inlet, ensuring an uninterrupted airflow path. Complementing this design is a custom-made high-flow dry filter, rigorously tested for ISO-certified filtration performance and boasting a larger filtration area compared to the stock filter.

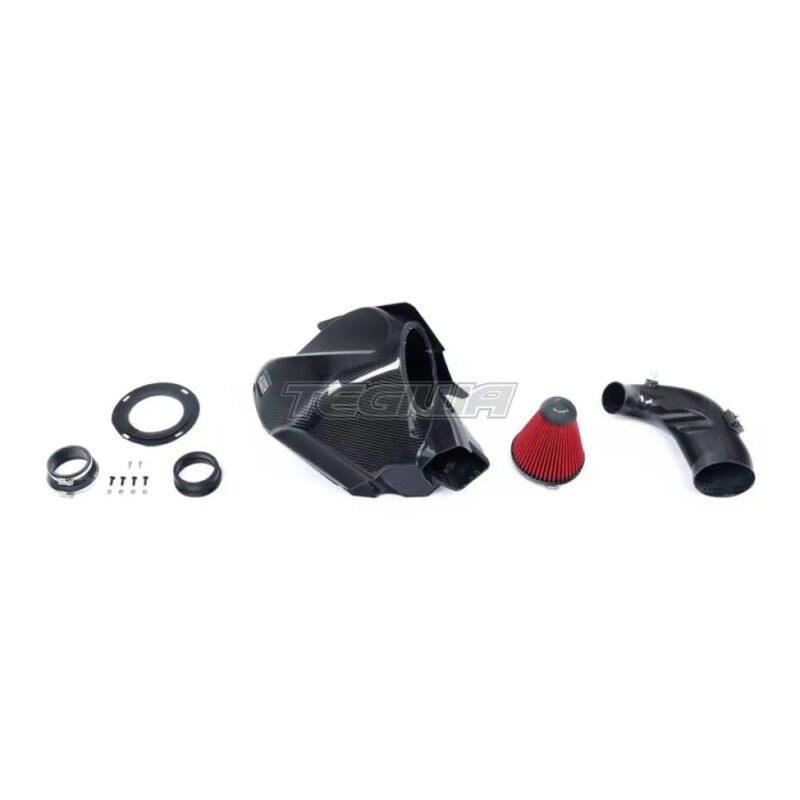

The Eventuri X3/X4 M40i intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:Each intake system consists of:

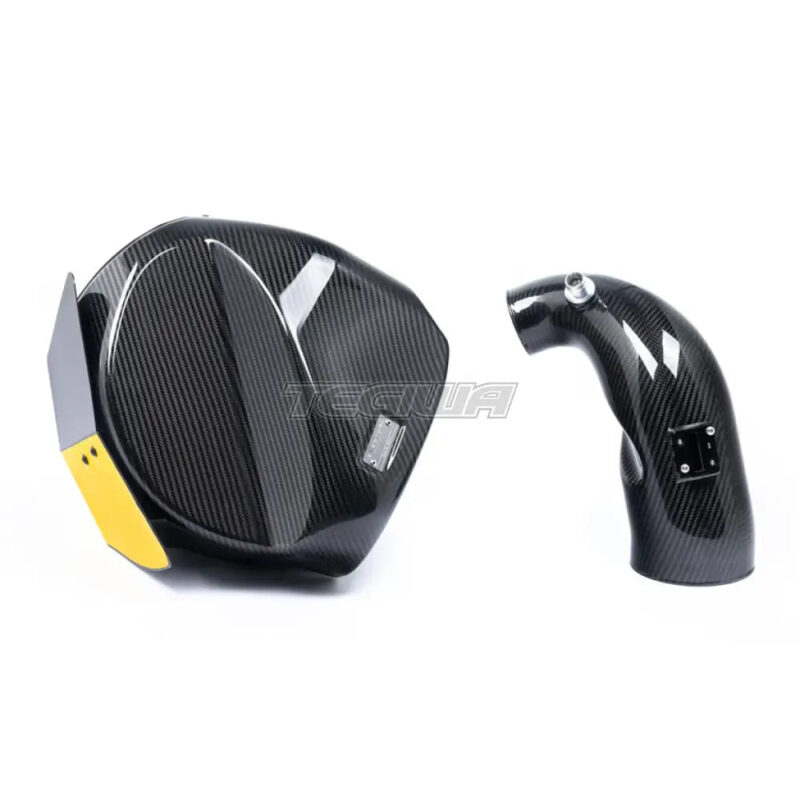

Carbon Fiber Airbox
Bespoke High Flow Dry Cone Filter
Carbon Fiber Inlet Tube
CNC Machined Temperature Sensor Mount
CNC Machined Breather adapter
CNC Machined Turbo Flange
Heat Shield with Gold Reflective Backing
Laser Cut Stainless Steel Brackets
Silicon Coupler with OEM Specification Clamps
